Innoslate Software Navigation Overview

Find your way to what you need in Innoslate.

The black top navigation bar, located at the top of Innoslate, is a constant fixture throughout the application. In nearly all places within Innoslate, the navigation bar will remain fixed at the top of your browser window. This bar is your primary means of navigating around Innoslate's Dashboards, Views, and Features.

  • MENU Drop-down

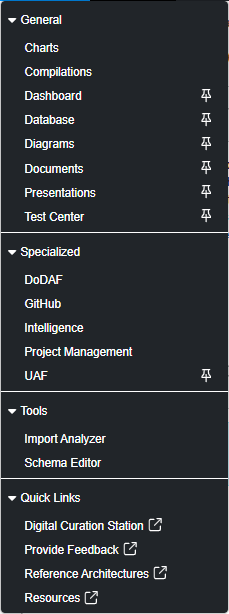

    The ‘MENU’ drop-down is the leftmost feature of the top navigation bar as shown below:

Screenshot 2023-07-20 at 12.58.43 PM



This drop-down contains menu items with the links necessary to successfully navigate around Innoslate. The links under the drop-down are arranged into three sections: General, Tools, and Quick Links.

Under the “General” section are navigational links to your project’s Dashboard, Database View, Diagrams Dashboard, Documents Dashboard, and Test Center Dashboard.

Under the “Tools” section are navigational links to tools within Innoslate: DoDAF Dashboard, Import Analyzer, Schema Editor, Intelligence Dashboard, GitHub Dashboard and Project Management Dashboard.

Under the “Quick Links” section, the Documentation link opens Innoslate’s Help Center website, the Webinars link opens Innoslate’s Webinars on YouTube, and the Contact Us link sends you to our Support Ticket page .

This drop-down contains menu items to successfully navigate around Innoslate. The links under the drop-down are arranged into three sections: General, Tools, and Quick Links.

  • Pinned Links

    The next set of button links to the immediate right of the ‘MENU’ drop-down are items that have been “pinned” to the top navigation bar. You can rearrange the order of these items by dragging and dropping them on the navigation bar. By default, four items are pinned to the bar: Dashboard, Database, Diagrams, and Documents. Simply click the button with the name of the view or tool to be automatically navigated to that destination. We recommend pinning the features of Innoslate you use most often for easy one-click access.

Pinned Links

Items on the Right

  • Chat Sidebar Button

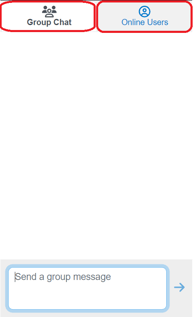

    Clicking the ‘Chat Sidebar’ button toggles the collaboration sidebar open and closed. You will find the collaboration sidebar fixed to the right of your browser window when it is open. The sidebar allows you to see which users are currently online collaborating on the same project and gives you access to chat with those users in a group or point-to-point.

Chat Button
  • Share Button

    Clicking the ‘Share’ button opens the ‘Share Project’ dialog.

Share Project Button

For more on Sharing your project, you can find that here.

  • Notification Button

    The bell icon will notify you when changes are being made in the project from other users.
    notification changes
  • Switch Projects Drop-down

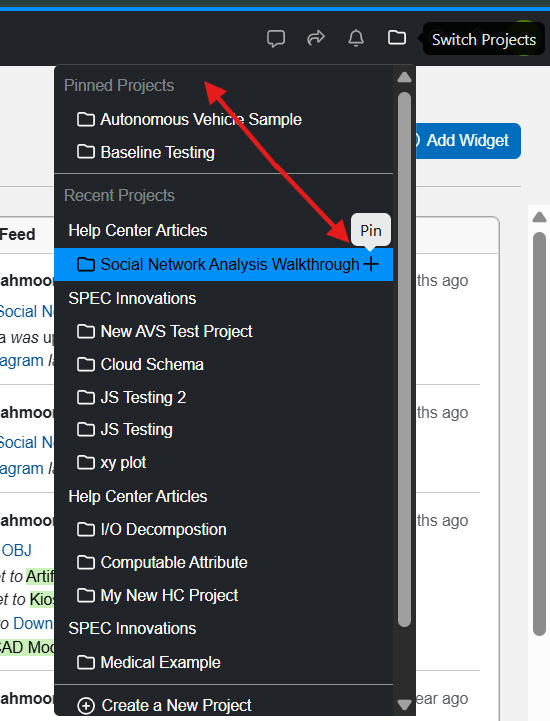

    The ‘Switch Projects’ drop-down contains links to switch to any of your existing projects, as well as a “Create a New Project” link, which opens the ‘Create a New Project’ dialog box and a “Manage Projects” link that directs you to the ‘Manage Projects’ page.

Switch Project Dropdown

For more on managing your projects, please click here.

  • Project Preferences

    The ‘Project Preferences’ drop-down is the right-most menu item of the top navigation bar. This drop-down is displayed as a gear circle that will display the following features available: "AI Assistant", "Innoslate Help", "Banner", and "Clear Sessions".

    Screenshot 2023-07-20 at 12.48.21 PM
  • User Drop-down

    The ‘User’ drop-down is the right-most menu item of the top navigation bar. This drop-down is displayed as a green circle with your first initial. Clicking this drop-down allows you to access/update your Innoslate user account profile, change your password, enable Two-Factor Authentication or sign out of Innoslate.
