Import Analyzer

Importing UML/SysML (.xmi) Files

Import UML/SysML (.xmi) Files into Innoslate through the Import Analyzer.

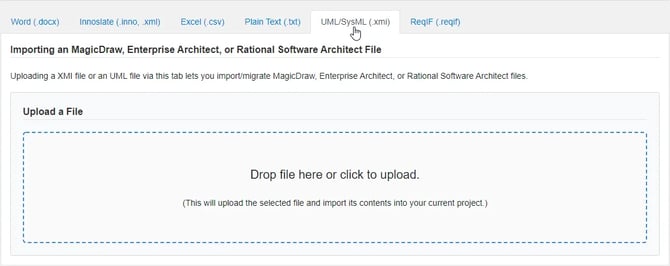

Open the ‘Import Analyzer‘ and select the ‘UML/SysML (.xmi)’ tab.

import analyzer xmi

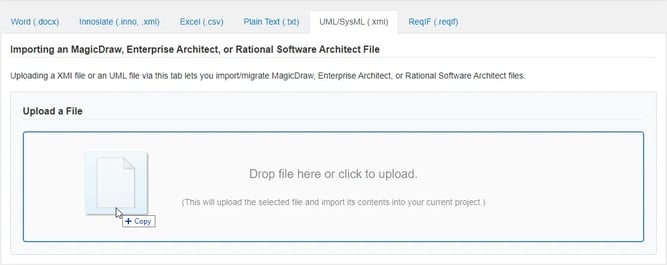

import analyzer xmi 2

Upon successful import, you will be navigated to ‘Database View,’ where you will find your project’s database populated with the information from the .xmi file.



To continue learning about Import Analyzer, Click Here.

(Next Article: Importing ReqIF (.reqif) Files)
