Physical I/O Modifications & Settings

Below we'll cover editing the Physical I/O diagram constructs and its settings options.

 Asset Construct Editing An overview of editing an Asset construct.
Input/Output Construct Editing An overview of editing an Input/Output construct.
Multiple Constructs Editing An overview of editing multiple constructs at once.
Physical I/O Settings An overview of the Physical I/O's settings options.
The previous article gives an introductory explanation to the Physical I/O diagram. In this article, we'll go over the editing options and settings for the diagram.

Asset Construct Editing

asset construct editing physical i/o diagram

When an Asset is selected, the top toolbar options provide editing options as shown above and explained below.

bold asset name physical i/o diagram

This button will 'Bold' the name of the Asset in the construct on the canvas.

italicize asset name physical i/o diagram

This button will 'Italicize' the name of the Asset in the construct on the canvas.

change text fill color asset physical i/o diagram

Using the HTML Color Picker that drops down from the 'Change Text Fill Color' Option, users can change the text color of the Asset's name in the construct on the canvas by selecting the color associated to the desired color and using the scale below it to select the color or simply inputting in the Hex, R, G, B fields the proper codes and numbers.

change fill color asset physical i/o diagram

To change the color fill  of the Asset construct on the Canvas, the 'Change Fill Color' option can be used with the HTML Color Picker dropdown, by selecting the color associated close to the desired color and selecting fromt he color canvas in the dropdown or simply inputting in the fields the proper codes and numbers.

reset color back asset physical i/o diagram

The 'Reset color back to default' option will reset the construct fill and text color back to the defaulted gray and black.

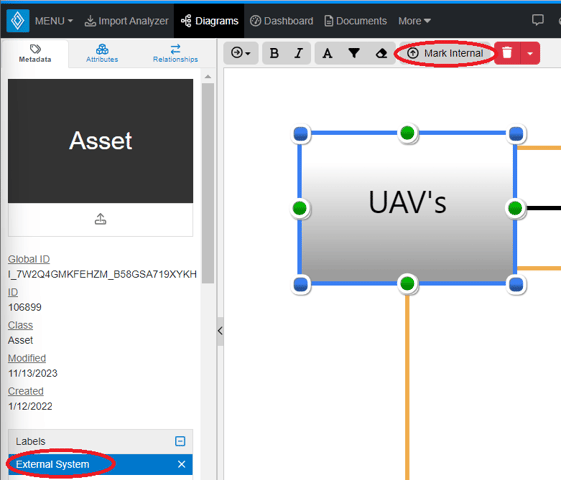

mark external asset physical i/o diagramThe 'Mark External' option allows users to exclude an Asset from the diagram's root entity's decomposition. It adds an 'External' label and changes the Asset's color to a darker gray to distinguish it (as shown below). The Mark External button then also changes to 'Mark Internal,' if users want to include the Asset back into the decomposition and remove the label. This feature is particularly usefzful when including an Asset in a diagram that does not need to be part of the hierarchy.

mark internal asset physical i/o diagram



Input/Output Construct Editing

i/o editing overview physical i/o diagram



Bold

bold i/o physical i/o diagra,

This option will Bold the name of the Input/Output construct selected on the canvas.

Italicize

italicize i/o in physical i/o diagram

This option will Italicize the name of the Input/Output construct selected on the canvas.

Change Text Fill Color

change text color on i/o physical i/o diagram

Using the HTML Color Picker that drops down from the Text Fill Color Option, users can change the text color of the Input/Output construct selected on the canvas by selecting the color associated close to the desired colorwith the scale or simply inputting in the Hex, R, G, B fields the proper codes and numbers.

Change Stroke/Line Color

change line color on i/o physical i/o diagram

To change the color of the Input/Output on the Canvas, the 'Change Stroke/line color option' can be used with the HTML Color Picker dropdown, by selecting the color associated close to the desired color and selecting fromt he color canvas or scale in the dropdown or simply inputting in the fields the proper codes and numbers.

Reset Color back to default

reset color to default on i/o physical i/o diagram

The Reset color back to default option will change the entity selected on the canvas back to the default black colors.

Line Options

line options menu for i/o physical i/o diagram

The line construct on the canvas for the Input/Output can be changed with the options under the 'Line Options' dropdown. Users may change the line to be Straight or Orthogonal.  The Item Flow options will add arrows to the line for users that need to show flow. The flow options are UndirectedDirectedReverse or Bidirectional.

Multiple Constructs Editing

multiple construct editing overview physical i/o diagram

Users may drag their cursor outside of the constructs and a box will appear to select as many Asset constructs the user desires. Many features on the top toolbar will appear upon doing so for the user to edit multiple Asset constructs at once. Let's go over each option as highlighted above.

Bold

bold multiple constructs physical i/o diagram

This option will Bold all the names of the multiple Asset constructs selected on the canvas.

Italicize

italicize constructs physical i/o diagram

This option will Italicize all the names of the multiple Asset constructs selected on the canvas.

Change Text Fill Color

change text fill color multiple constructs physical i/o diagram

Using the HTML Color Picker that drops down from the Text Fill Color Option, users can change the text color of the multiple Asset constructs selected on the canvas by selecting the color associated close to the desired color simply inputting in the Hex, R, G, B fields the proper codes and numbers.

Change Fill Color

change fill color multiple constructs physical i/o diagram

Using the HTML Color Picker that drops down from the Text Fill Color Option, users can change the color of the constructs of the multiple Asset constructs selected on the canvas.

Change Stroke/line color

change stroke line color multiple constructs physical i/o diagram

Using the HTML Color Picker that drops down from the Change Stroke/Line Color Option, users can change the color that borders the constructs of the multiple Asset constructs selected on the canvas.

Reset Color back to default

reset color mult constructs physical i/o diagram

The Reset color back to default option will change thmultiple Asset constructs selected on the canvas back to the default gray and black colors.

Align Vertically

align vertically mult ent select act diag canvas

This selection will align the constructs vertically for the multiple Asset constructs selected on the canvas.

Align Horizontally

align horiz mult ent select act diag canvas

This selection will align the constructs horizontally for the multiple Asset constructs selected on the canvas.

Clone Shape

clone shapes physical i/o diagram

The Clone Shape option is to bring size uniformity to the diagram's constructs. When this option is selected, the green highlighed entity will be what the other constructs clone to so they are all the same size.

Mark External

mark multiples external physical i/o diagram

The 'Mark External' option allows users to exclude multiple Asset constructs from the diagram's root entity's decomposition.

Physical I/O Settings

physical i/o settings menu

The above Physical I/O Diagram Settings menu dropdown is the wrench icon on the top right of the toolbar frame. This button is a fixed dropdown and does not change dependent on what the user has selected. Let's delve into the options available in this dropdown below.

Check Model

The Check Model option will check the Input/Outputs in the model and check for directionality, Conduit relationships and that Actions are associated to it. A modal will pop up to provide users the sugestions to fix them. These I/Os will also be indicated with colors as indicated below:

  • A yellow line means there is a missing relationship to the I/O. Either a Conduit and/or actions are missing.
  • A dash line indicates it is a conduit and it needs an I/O relationship that the Conduit transfers. Upon this fix, the line will be the I/O entity.
  • A red line indicates there is an issue with the directionality of the I/O between the Assets.

Hide Warnings

With this option, the color warnings for the Input/Outputs in the diagram may be hidden or shown.

Hide External

This option will show or hide the external Assets in the diagram.

Show/Hide Cross- Project Indicators

Users may show (or hide, if shown) the indicators on the constructs brought into the model from another Innoslate project.

Auto Number

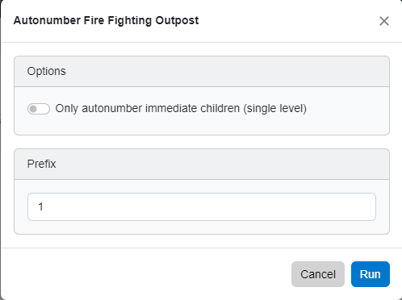

Users may Auto Number the constructs with the modal that pops up when this option is selected. Users may autonumber the lowest level of the Assets and/or add a Prefix.

autonumber window physical i/o diagram

Layout, Reset Diagram & Help

The final options provide users to reset their diagram after changes and layout the diagram after changes are made.

The very last option, 'Help,' will send users directly to the Help Center page for the Physical I/O Diagram for convenience.
