System Requirements Document Generator Overview

Easily generate a System Requirements Document from an asset diagram in Innoslate.

srd



A ‘System Requirements Document’ can be generated easily from an asset diagram.

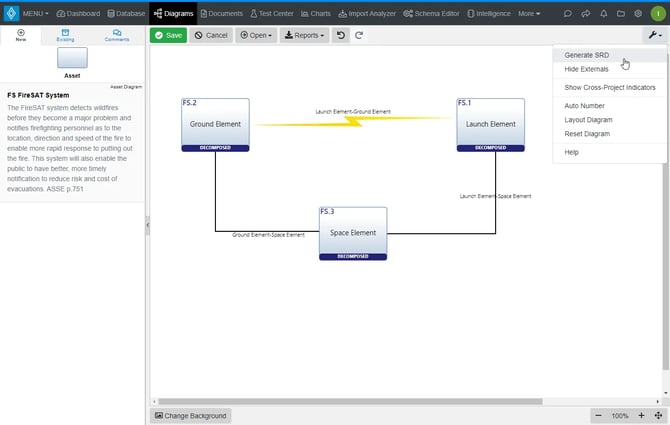

Step 1: Within an ‘Asset Diagram’, click on the wrench at the top right. Then select ‘Generate SRD’.

generate srd setting asset

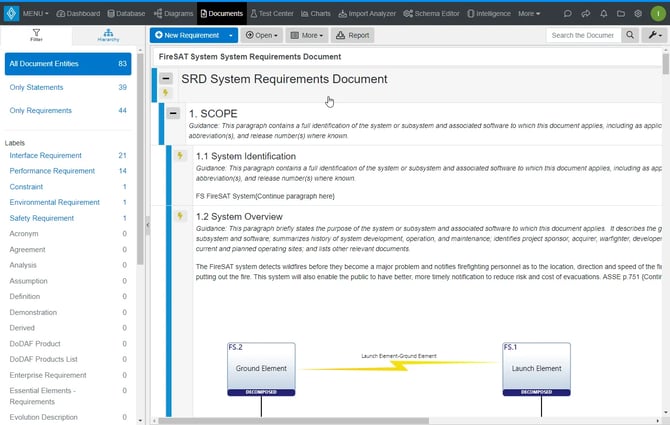

Step 2: Input a name for the baseline of the document that will be generated. Then click ‘Generate Baseline’ to redirect to the SRD. ‘Generate Baseline’ will create a new SRD if none exists or it will baseline the current SRD and update it based on the current model.

generate baseline

How the SRD Works

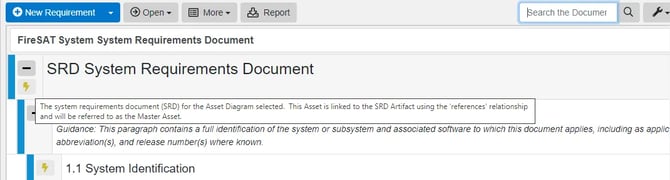

Entities with Lightning Bolts have notes that contain information on what should be inside the entity. Hover over the lightning bolt symbol to see the note.

Lightning

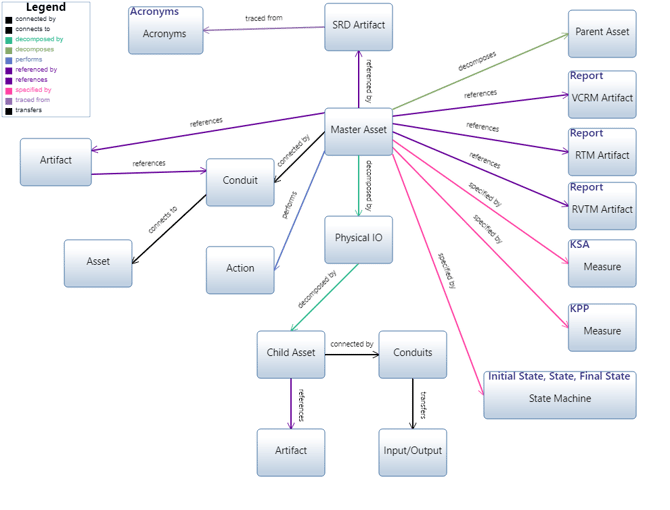

Below is an outline of the entities and relationships generated by the SRD.

master_asset_spider_diagram
