Project Management Dashboard Calendar

Below we'll cover how to add events on the Calendar Widget of the Project Management Dashboard.

The Calendar on the Project Management Dashboard is different from a Calendar Chart and is a special widget in Innoslate specifically for the Project Management Dashboard. Users are able to show Task and Time entities on this calendar under certain conditions, examples of each are in the image above. To make a Task entity or Time entity show up on the Project Management Dashboard's calendar the following conditions apply:

1. Task entities with a Kanban Board label show up if they have a Due Date attrubute will appear in purple
2. Task entities without a Kanban Board label show up if they have a Due Date attribute will appear in green
3. Time entities with a Kanban Column label show up if they have a Start Attribute will appear in blue

While there are a variety of ways to create an entity, to exemplify the conditions for each to appear on the Project Management Dashboard's Calendar widget, we will use the entity view of the respective entity as an example below.

Please note that holidays are automatically included in the Calendar widget for the convenience of users and cannot be modified.

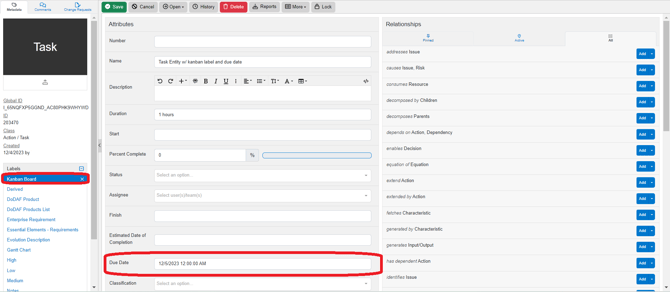

Task entities with a Kanban Board Label and a Due Date Attribute (purple)

To make sure that a Task entity appears on the Project Management Dashboard's Calendar widget on its due date in purple, users must follow these steps after creating the Task entity:

1. Apply the Kanban Board Label under the Metadata tab, as highlighted on the left sidebar of the Entity View.

2. Fill in the Due Date Attribute, as highlighted on the Attribute table in the middle of the Entity View.

By completing these actions, users will be able to see the Task entity on the designated due date in the Calendar widget on the Project Management Dashboard. This Task example appears in purple on the image at the top of this image.

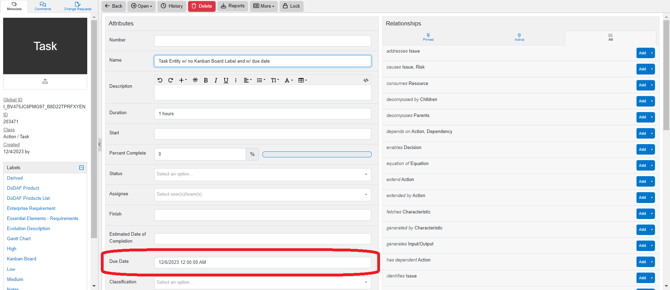

Task entities without a Kanban Board label and a Due Date Attribute (green)

To make sure that a Task entity appears on the Project Management Dashboard's Calendar widget on its due date in green, users must follow these steps after creating the Task entity:

1. Fill in the Due Date Attribute, as highlighted on the Attribute table in the middle of Entity View.

By completing these actions, users will be able to see the Task entity on the designated due date in the Calendar widget on the Project Management Dashboard. This Task example appears in green on the image at the top of this page.

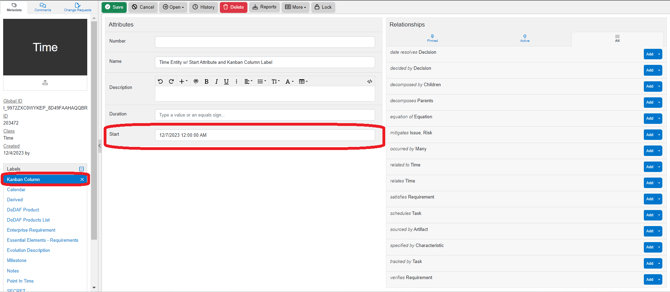

Time entities with Kanban Column Label and a Start Attribute (blue)

To make sure that a Time entity appears on the Project Management Dashboard's Calendar widget on its start date in blue, users must follow these steps after creating the Time entity:

1. Fill in the Start Attribute, as highlighted on the Attribute table in the middle of the Entity View.
2. Apply the Kanban Column Label under the Metadata tab, as highlighted on the left sidebar of the Entity View.

By completing these actions, users will be able to see the Time entity on the designated start date in the Calendar widget on the Project Management Dashboard. This Time Entity example appears in blue on the image at the top of this page.
